ELECTRONIC DAMPING ED-N

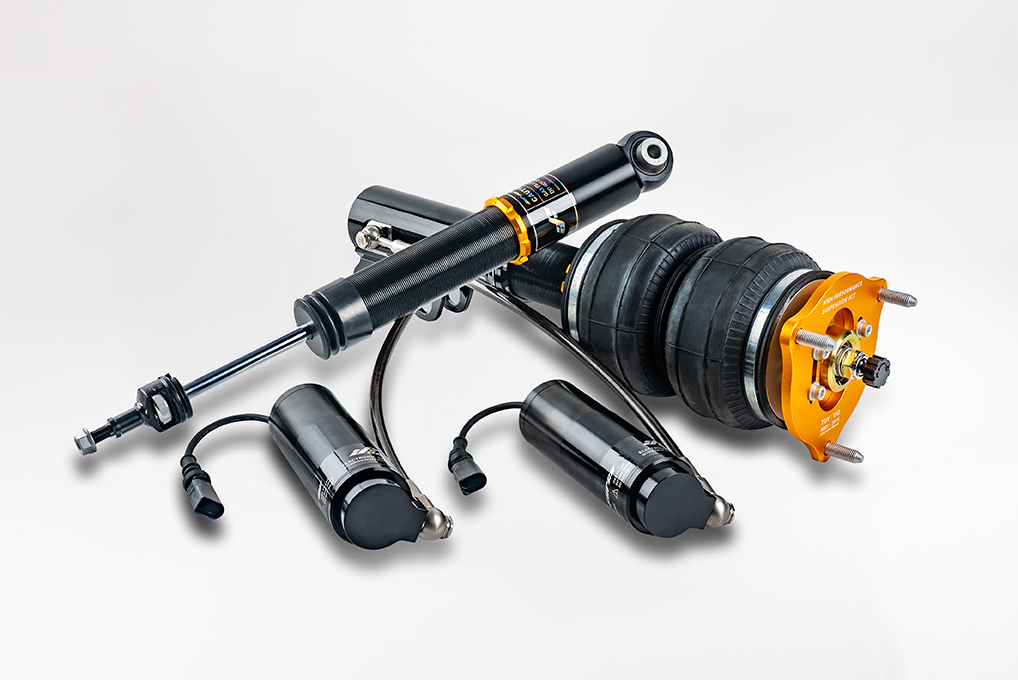

  • Developed specifically for selected vehicle applications, the ED-N is an electronic suspension system equipped with an external nitrogen reservoir. The system utilizes the vehicle’s original electronic damping connectors directly, requiring no modification to the factory wiring harness while maintaining full compatibility with the OE electronic control system.

  • While upgrading the vehicle with a high-performance suspension system, the ED-N retains the original electronic damping adjustment function. This allows drivers to benefit from enhanced handling performance while maintaining the convenience of the OE comfort mode and various factory driving modes.

  • The ED-N features an external nitrogen reservoir design and provides a larger damper oil capacity than the ED-O. The increased oil volume enhances damping stability during extended and high-load operation. The additional oil capacity also helps maintain consistent damper performance during continuous operation, making the ED-N particularly well suited for high-intensity and performance-oriented driving conditions.

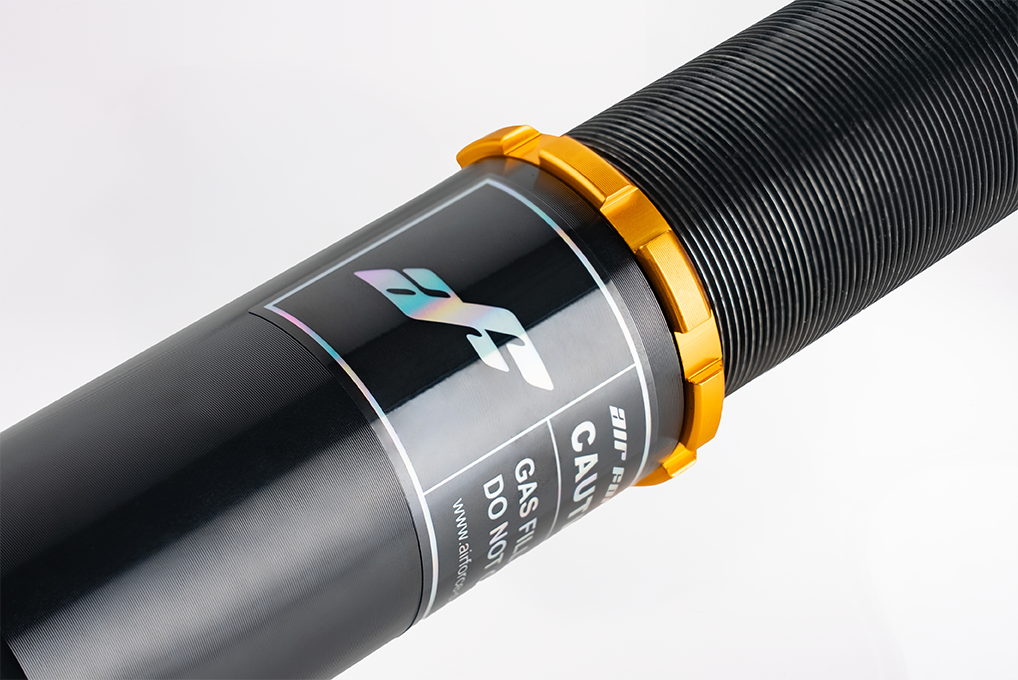

  • The damper features a high-strength monotube design with adjustable ride height, allowing precise suspension setup according to different road conditions and driving requirements.

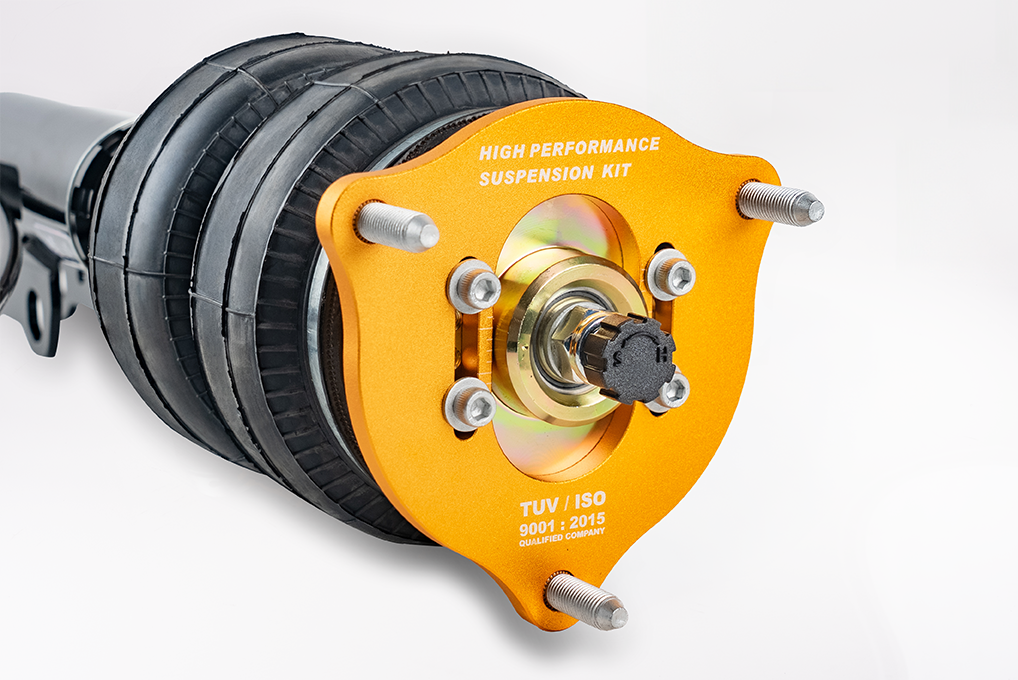

  • The damping system features a top-mounted adjustment mechanism with 36-way damping adjustment. Combined with the external nitrogen reservoir and increased damper oil capacity, the system provides more distinct differences between each damping setting, delivering a broader and more perceptible damping adjustment range. This allows for more precise suspension tuning across a wide range of driving conditions, including daily road use, mountain roads, and aggressive performance driving.
Inquiry
  • Product Description
  • Compatible with OE electronic damping control systems

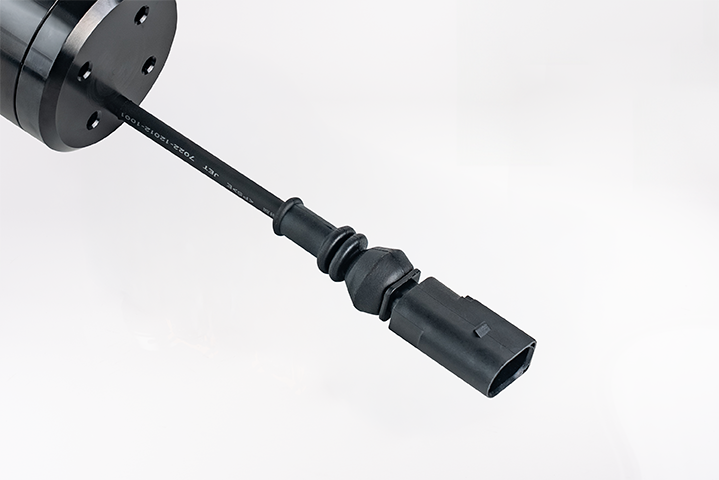

  • Direct-fit OE connector design with Plug & Play installation; no wiring harness modification required

  • Fully retains OE electronic driving mode functions

  • External nitrogen reservoir design

  • Increased damper oil capacity

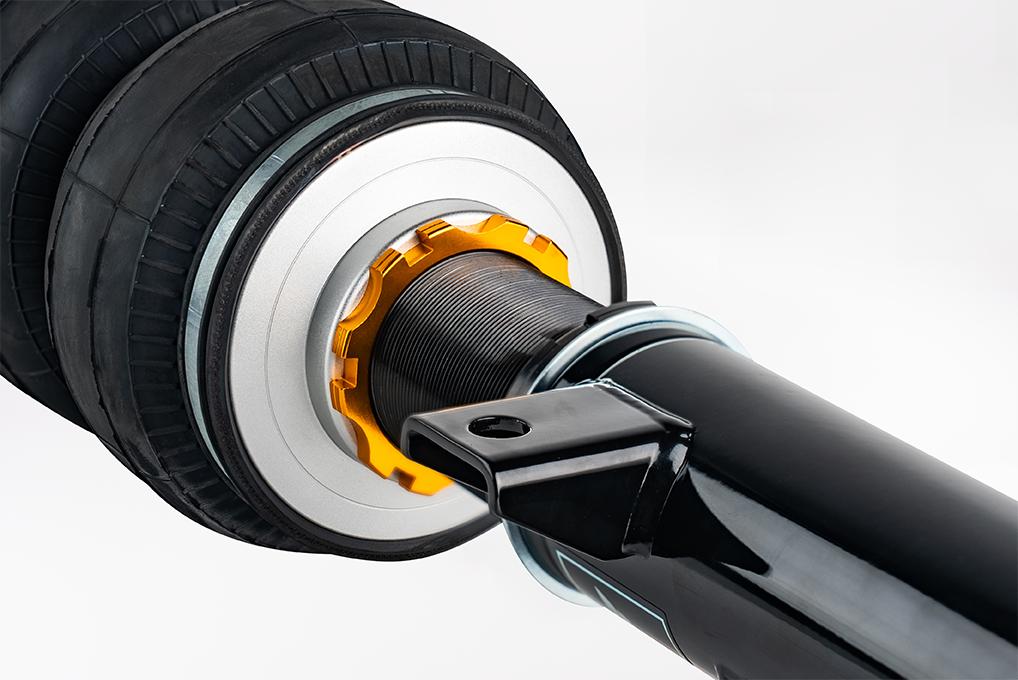

  • Adjustable ride height

  • 36-way damping adjustment

  • Broader and more perceptible damping adjustment range

  • Enhanced damping stability under high-load and extended operation

  • Balanced comfort and handling performance

  • Suitable for daily road use and high-performance driving
